Description

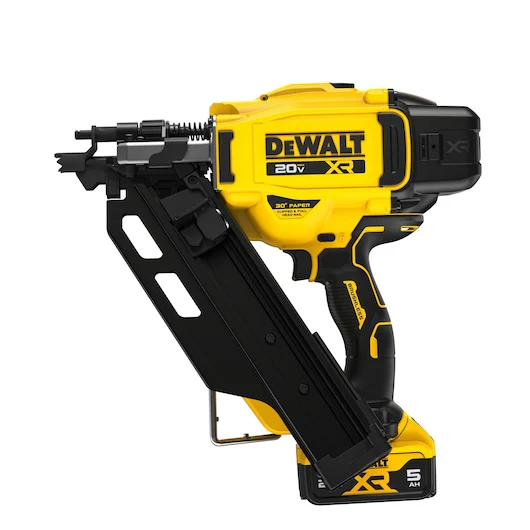

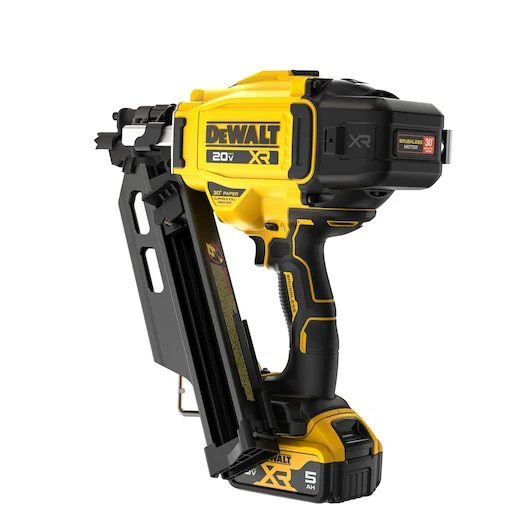

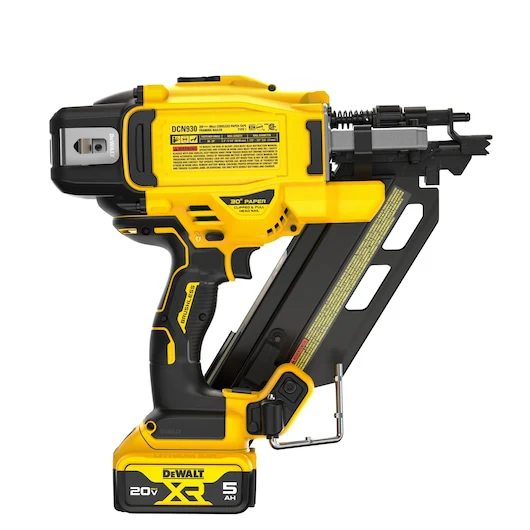

Complete a wide variety of framing jobs with the DEWALT 20V MAX* Brushless Cordless 30 deg Paper Collated Framing Nailer Kit. Designed to help minimize downtime between shots with an innovative flywheel that stays active for 6 seconds after the trigger is released, this lightweight cordless Nailer removes the need for hoses and compressors. Install up to 530 sq-ft of subflooring per charge** and complete up to 100 ft of wall framing per charge† with this next-generation tool that delivers powerful performance in a wide range of applications.

Feature Bullets

• Cordless Convenience - Pneumatic framing pros can save up to 20 min daily in setup and clean-up time by switching from a pneumatic nailer to a DEWALT® cordless framing nailer***
• Help maximize productivity - install up to 530 sq. ft. of subflooring per charge** and complete up to 100 ft. of wall framing per charge†
• Powerful Performance - Finish a wide-range of applications with an powerful brushless motor
• Up To 72% More Sub-Flush†† - Drive nails up to 72% more sub-flush than previous generation††
• High-Strength Magnesium Magazine - High- strength magnesium magazine for durability
• Lightweight design - lighten your load on tough jobs with this tool that weighs only 8.65 lbs. (tool only)
• Innovative Nose Design - Align, grip and drive nails at aggressive angles with the redesigned nose specifically built for "Toe-Nailing" applications
• Help minimize downtime - help minimize time between shots with active flywheel technology in rapid sequential mode eliminating ramp-up time between shots
• Quick Setup - Show-up and get right to work with this cordless nailer requiring no compressors or hoses
• Simplify Inventory Management - Track and manage this Chip-Ready™ tool in the TOOL CONNECT™ system (Chip sold separately)
• Nail capacity - Take on tough jobs with up to a 3-1/2 in nail capacity
• On-Site Serviceability - Limit maintenance delays with field serviceable springs and driver blade
• Compatible with Extended Magazine (DZN920) - Hold 2 strips of nails using an optional extended magazine (DZN920) constructed from high-grade magnesium (magazine sold separately)

Specifications:

• Type: Brushless
• Bare Tool/Kit: Kit
• Tool Type: Nailer
• Nail Length: 2-3.5 in
• Nail Diameter: 0.113-0.131 in
• Magazine Style: Paper Tape
• Magazine Angle: 30 deg
• Voltage Rating: 20 V
• Battery Type: Lithium-Ion
• Battery Capacity: 5 Ah
• Overall Length: 13.9 in
• Overall Width: 5.6 in
• Overall Height: 13.2 in
• Includes: (1) Nailer, (1) DCB205 Battery, (1) DCB1104 Charger, (1) Belt Hook and Screw, (1) No Mar Tip, (1) Manual, (1) Hex Wrench, (1) Soft Bag
• Application: For Residential Framing, Sheathing, Subflooring, Setting Trusses, Punchout and Deck Building Applications
• Warranty: 3 Years Limited
