Description

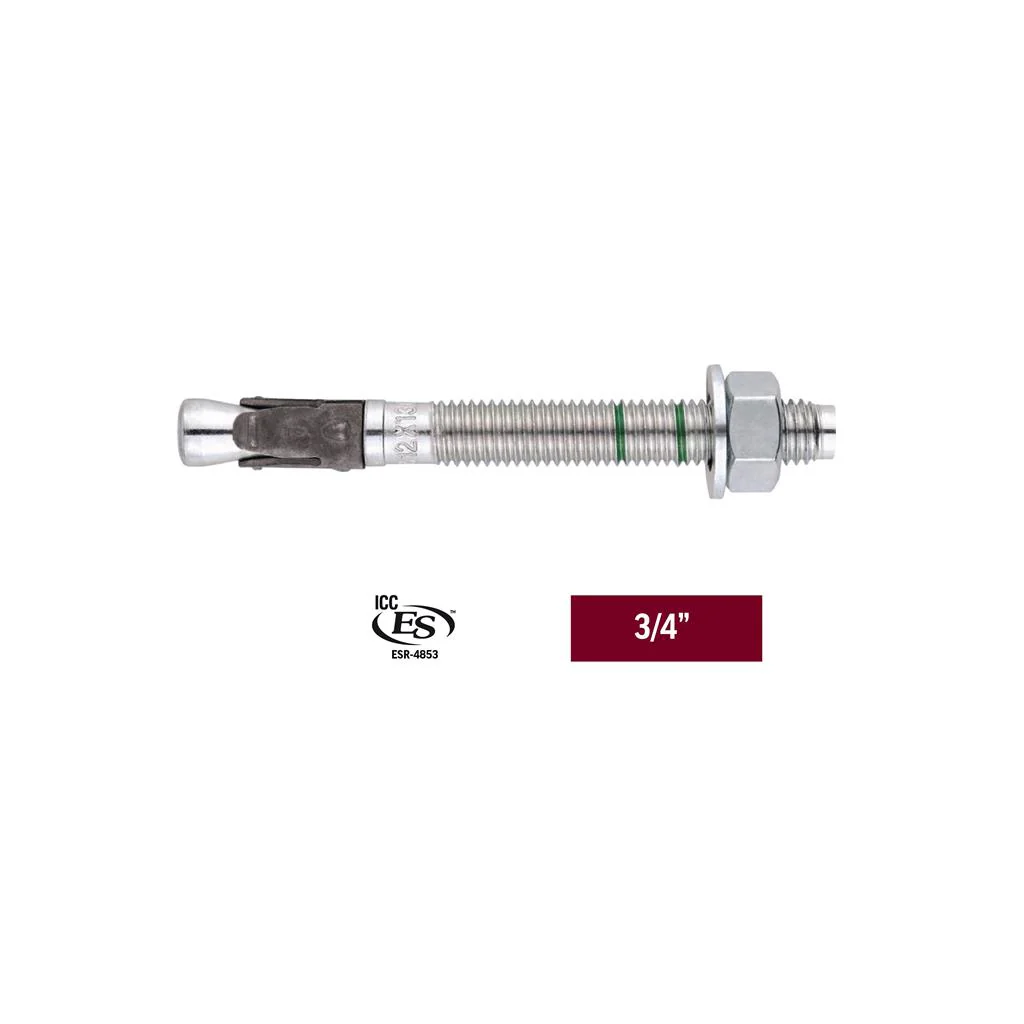

DuraDrive 3/4 in x 5-1/2 in High Performance White Zinc Wedge Anchor is a heavy-duty mechanical expanding anchor with a finished hex head. They are used to resist static, wind and seismic tension and shear loads in cracked and uncracked normal weight concrete that has a specified compressive strength of between 2500 psi and 8500 psi. Concrete wedge anchors' design allows them to anchor fixtures into concrete. Concrete wedge anchors work by inserting them into a hole drilled into concrete. The concrete wedge anchor is then expanded, wedging itself securely in the concrete. Compatible with normal weight solid concrete.

Feature Bullets

• Anchor size is equal to hole size
• Category 1 classification
• Typical Applications include steel base plates, storage racking, seating, curtain walls, tilt-up braces, cable trays, pipe support, brick shelf angles and mechanical equipment
• Fully threaded with fast torque up
• Diameter, length and identifying marking stamped on head of each anchor

Specifications:

• Type: Performance
• Diameter: 3/4 in
• Overall Length: 5-1/2 in
• Material: Steel
• Finish: White Zinc Plated
• Applicable Materials: Concrete & Masonry
• Measure Type: Imperial
• Standards: ICC-ES Approved
• Limitations: Not recommended for installation into uncured concrete (less than 7 days old)
• Application: For Heavy Duty Applications
• Packaging: 10/Pack
