40V max XGT® Li-ion battery and brushless motor makes this saw excellent choice for demanding applications. The blade can reach up to 4 000 min to ensure high cutting performance with large cutting capacity. Vacuum remote startup function (AWS) and XPT for improved dust and water resistance.

Features:

• Brushless DC motor with high power to weight and size ratio
• Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing/production applications
• AWS (Auto-Start Wireless System) uses Bluetooth® technology to communicate between tool and vacuum and enable wireless control when used with Makita AWS cordless tools
• Max. 3-3/4 in cut capacity (at 0 deg ) ideal for single pass cutting of 4X dimensional lumber
• eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
• Electric brake stops blade 3-5 seconds after trigger is released for increased operator safety
• Soft start feature gradually increases speed to eliminate start up shock
• Trigger-lock button prevents accidental start-up for increased safety

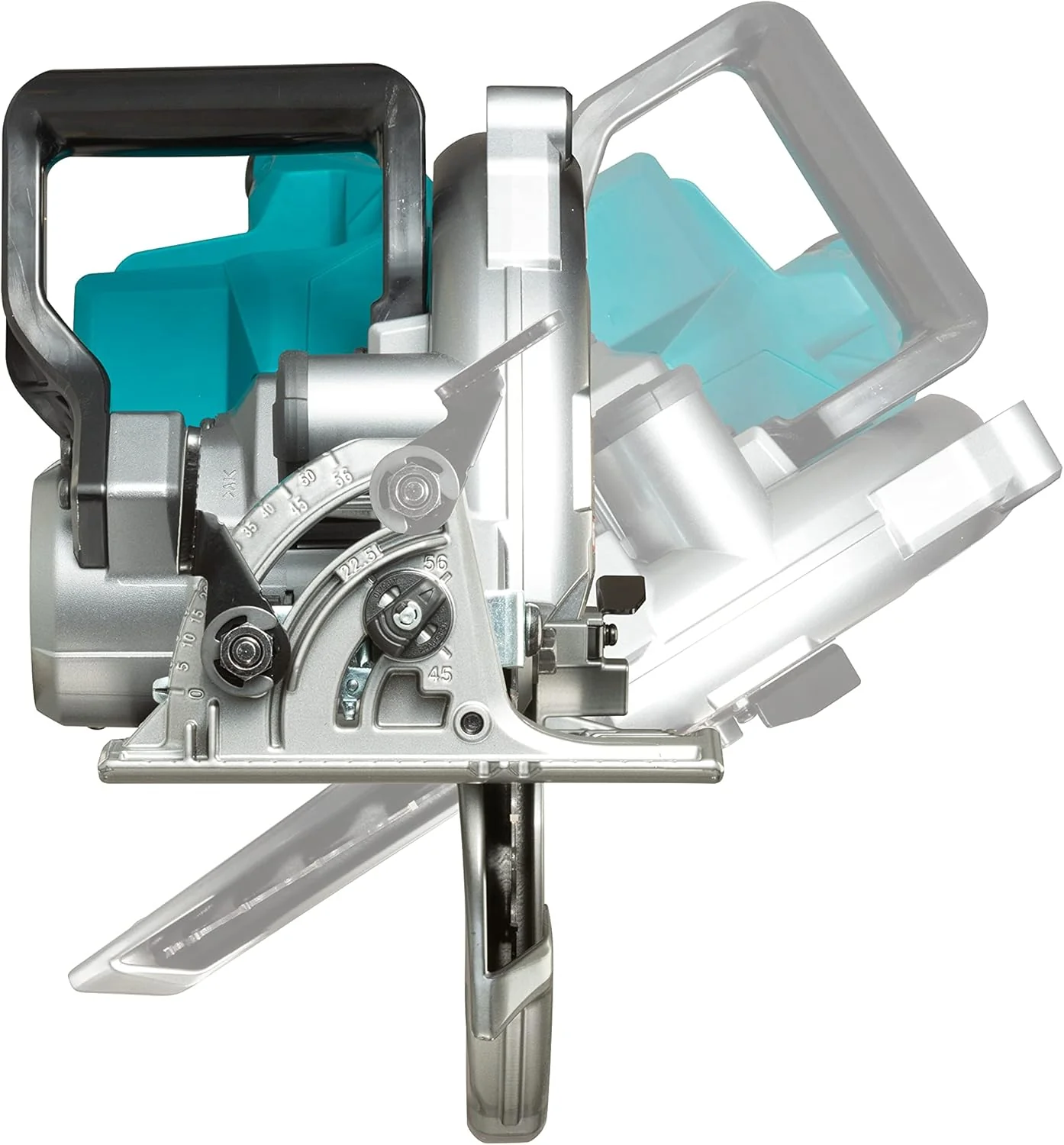

• Bevel capacity of 0 deg - 56 deg with positive stop at 22.5 deg and 45 deg
• High performance and lightweight design with magnesium blade case and base plate
• On-board wrench storage for fast and easy blade changes
• Ergonomic soft rubber grip design for vibration absorption and comfortable operation

Specifications:

Type: Brushless
Bare Tool/Kit: Tool
Tool Type: Circular Saw
Blade Diameter: 10-1/4 in
Blade Material: Carbide
Cutting Depth: 3-3/4 in @ 0 deg, 2-3/4 in @ 45 deg, 2-1/8 in @ 50 deg
Arbor Hole Size: 5/8 in
Cutting Angle: 0 deg, 45 deg, 56 deg
Voltage Rating: 40 V
Battery Type: Lithium-Ion
Speed Rating: 4000 rpm
Switch Type: Trigger
Handle Type: Ergonomic
Handle Material: Rubber
Sound Level: 96 dBA
Overall Length: 19-1/4 in
Includes: Circular Saw, E-07272 10-1/4 in 24T CT Blade, 140Y64-3 Side Handle, (13) 782016-4 Offset Wrench
Warranty: 2 Years

Documents

Owners/User Manual
