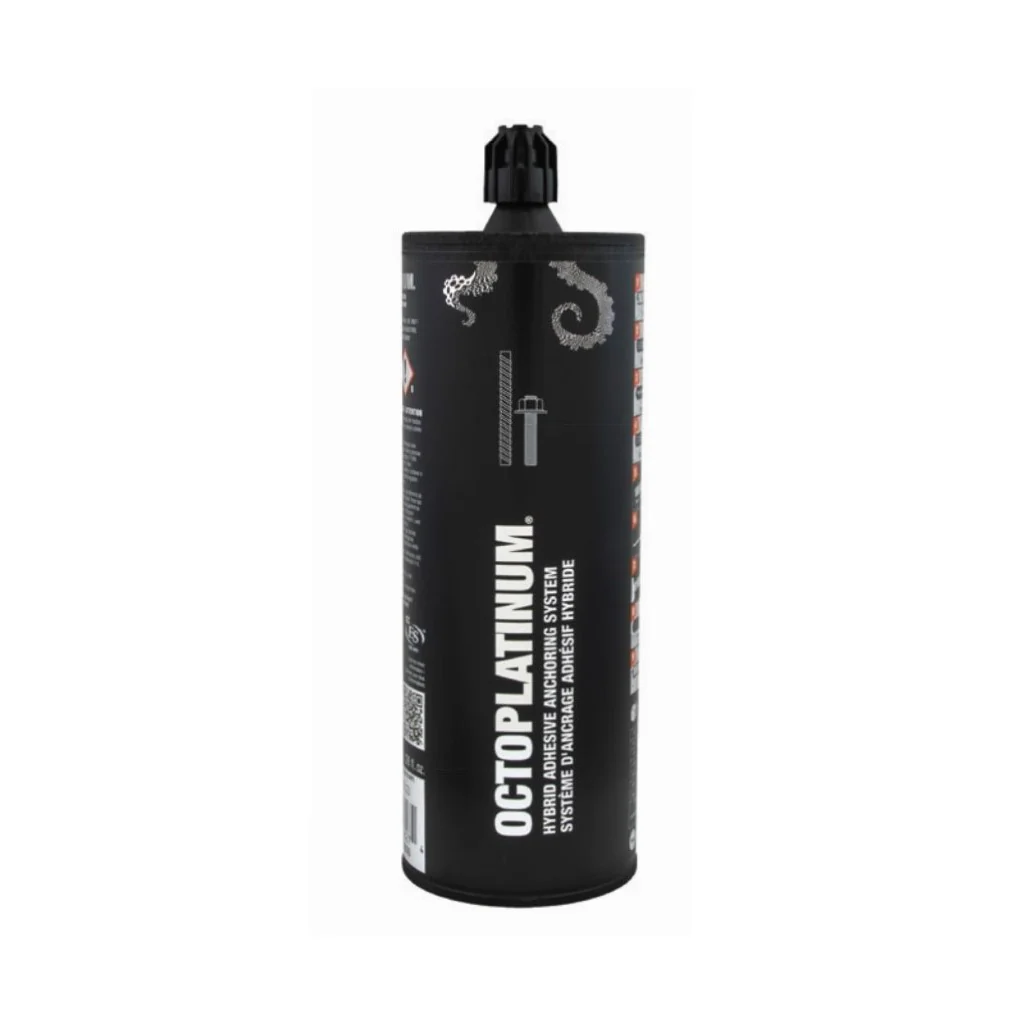

OCTOPLATINUM 825-mL/28 oz. Hybrid Adhesive Anchoring System Jumbo Side-by-Side Cartridge is a 2-component reaction resin mortar, based on "a URETHANE HYBRID resin styrene-free and will be delivered in a 2-c cartridge (ST - standard cartridge) system". This high performance product may be used in combination with a hand-, battery- or pneumatic tool and a static mixer. It was designed especially for the anchoring of threaded rods, reinforcing bars or internal threaded rod sleeves into concrete (also porous and light). Based on the excellent standing behaviour the usability for overhead application is given, the OCTOPLATINUM product is characterised, by a huge range of applications with an installation temperature from -5°C and an application temperature up to 160°C, as well as by high chemical resistance for applications in extreme ambiences, for example, in swimming pools (chlorine) or in closeness to the sea (salt). The wide range of certificates, national and international approvals, allows nearly every application.

Features

• Evaluated for indoor and outdoor applications; including overhead
• For heavy anchoring - doweling and post-installed rebar connection
• Suitable for attachment points with small edge and axial distances due to an anchoring free of expansion forces
• Suitable for the fixation of facades, roofs, wood constructions, metal constructions; metal profiles, columns, beams, consoles, railings, sanitary devices, cable trays, piping, and post-installed rebar connections
• Overhead application
• High chemical resistance, low odour formulation, high bending and compressive strength
• Cartridge can be reused up to the end of the shelf life by replacing the static mixer or resealing cartridge with the sealing cap

Approvals and Listing

• Fire resistance test report (R120): up to 120 min
• Certificated for drinking water applications acc. to NSF Standard 61
• ICC-ES 4931
• US-approval acc. to AC 308 in concrete
• Road Authority Listing

Applications

• Underground:cracked and non-cracked concrete, light-concrete, porous-concrete, natural stone (Attention! natural stone, can discolour; shall be checked in advance)
• Anchor elements:Threaded rods (zinc plated or hot dip, stainless steel and high corrosion resistance steel), reinforcing bars, internal threaded rods, profiled rod, steel section with undercuts (e.g. perforated section)
• Temperature range:-10°C up to 40°C installation temperature. Cartridge temperature min. 5°C; optimal 21°C. -40°C to 160°C base material temperature after full curing
